Channel letter types explained: face-lit, halo-lit, combination and non-illuminated

Almost every channel letter brief starts with the same question: how should the sign look after dark? The answer decides the construction, the materials, the mounting and much of the cost. This guide walks through the main families of channel letters – face-lit, halo-lit, combination, acrylic and non-illuminated – and explains where each one works best. For every type we also point to the matching SmileSign production profile, so you can go straight from the design idea to a specification.

What is a channel letter?

A channel letter is a three-dimensional letter built as a hollow shape: a face (the front), a return (the side band that gives the letter its depth) and usually a back. In illuminated versions, LED modules sit inside the channel and the construction decides where the light comes out. The same product goes by many names: built-up letters in the UK, doosletters in the Netherlands and Flanders, lettres boîtiers in France and Profilbuchstaben in Germany.

What separates one type from another is mainly the path of the light: through the face, out of the back onto the wall, through the sides – or nowhere at all.

Face-lit (front-lit) channel letters

In a face-lit letter, the face is made of translucent acrylic and the LEDs shine forward through it. The whole letter shape glows, which makes this the most legible option at night and the natural choice when the brand colour must be visible on the letter itself.

The return is usually metal – aluminium or stainless steel – and the edge between face and return can be finished with a trim or built without one. In our range there are four face-lit profiles:

• SML 4 – stainless steel return and trim with an acrylic face in the colour of your choice. Reverse lighting is also possible.
• SML 4 EXCLUSIVE – the premium version with a metal back-face, mounted with zero gap to the wall.
• SML 5 ECO – a CNC-cut acrylic face with a painted aluminium side band bonded to the edges, available in 4, 6, 8 or 10 cm depths. A sensible choice for budget-conscious storefronts and roll-outs.
• SML 6 – a reverse-tray construction in stainless steel or aluminium, with face options such as 5, 10 or 20 mm acrylic, Elkamet, Italian style or emboss.

Best for: storefronts, retail parks, high streets and any sign that has to be read clearly at night.

Halo-lit (back-lit) channel letters

A halo-lit letter – also called back-lit or reverse-lit – has an opaque face and returns. The LEDs point backwards and light up the wall behind the letter, so the letter appears as a crisp silhouette surrounded by a soft glow. By day it reads as a solid metal letter; at night the halo gives a calm, premium look.

Because the light has to spread onto the wall, halo letters are mounted at a distance from the surface, and the wall itself becomes part of the sign. A light, matt wall shows the halo well, while dark or very glossy surfaces change the effect. On important jobs a sample or mock-up on the real wall material is worth the effort.

• SML 3 – aluminium or stainless steel letters with LED modules in the required colour, supplied with a suitable transformer. Available as #1 Eco (screw mounted) or #2 Standard (back acrylic plus mounting screws).
• SML 3 EXCLUSIVE – mostly stainless steel on a 20 mm acrylic base that spreads the light evenly; the base can sit flush with the return or protrude.

Best for: reception areas, offices, hotels, showrooms and premium facades.

Combination: face-lit and halo-lit in one letter

Some projects want both: a glowing face for legibility and a halo for depth. Several of our profiles support this. SML 4 and SML 4 EXCLUSIVE can be lit from the front and the back, SML 6 version #2 is front- and back-lit on high mounting screws, and SML 9 version #5 combines front and back lighting with a metal side band. Combination lighting adds LEDs and complexity, so it is best kept for signs where the extra effect really matters.

Acrylic, side-lit and vacuum-formed letters

Not every illuminated letter has a metal return. Acrylic constructions give a softer, all-round glow:

• SML 7 – solid acrylic block letters, 30 or 40 mm deep, with painted or foiled sides. Lighting can be front, front & back, front & side, side & back, or side only.
• SML 8 – acrylic channel letters on a PVC foam or metal back, in classic or Italian style; light can also come out through the side band.
• SML 9 – vacuum-press (thermoformed) letters with domed faces, in ready colours or with digital print.

These suit interiors, shop-in-shops, hospitality and colourful retail brands.

Non-illuminated letters

Unlit letters remain a strong choice when the sign is mainly seen in daylight, inside a building, or on facades where illumination is not wanted or not allowed. Without LEDs or a power supply they need no electrical connection on site.

• SML 1 – cut-out letters from composite, PVC foam, acrylic, aluminium or stainless steel, fixed flat with double-sided tape or raised on stand-off screws.

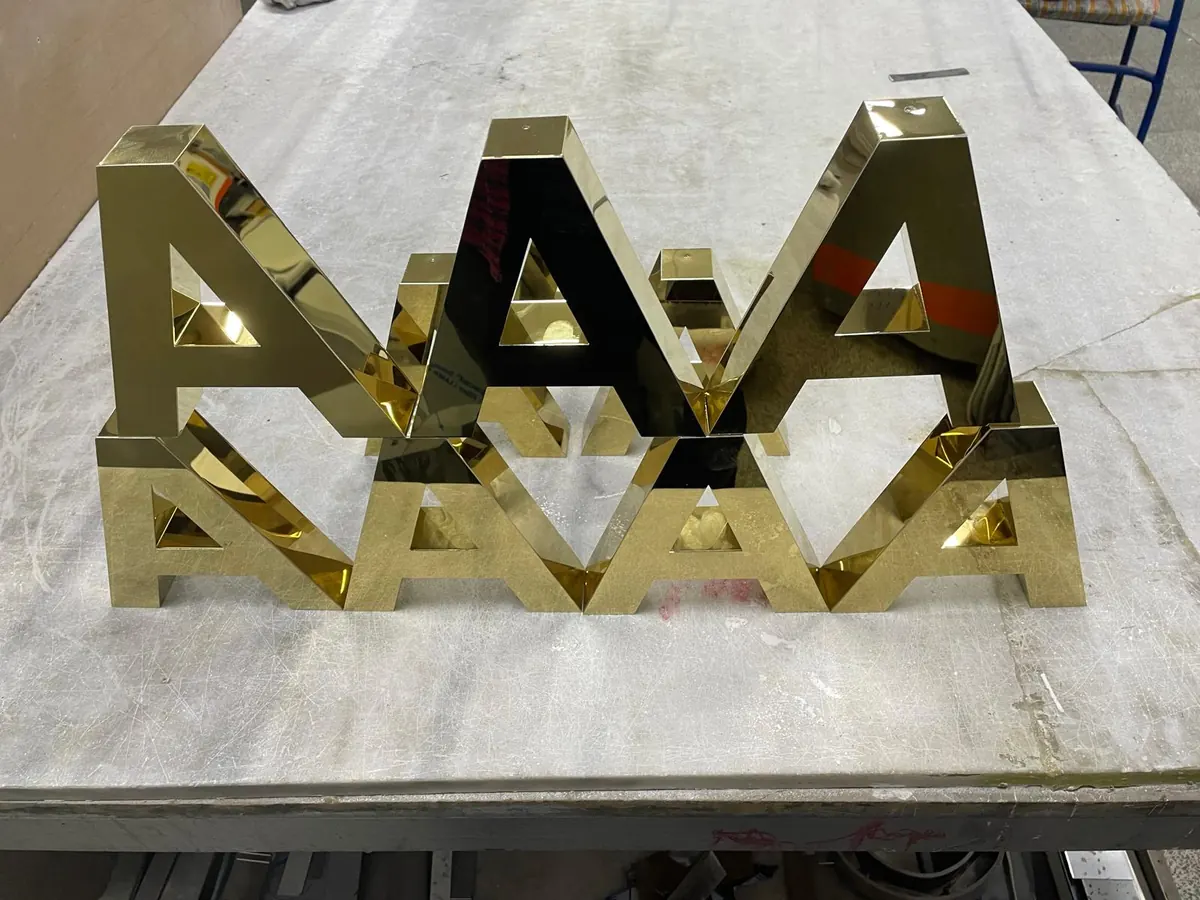

• SML 2 – built metal letters in aluminium (CNC-cut, argon-welded) or stainless steel (laser-cut, laser-welded), in RAL colours or stainless finishes such as gold mirror.

Channel letter types compared

How to choose the right type

Before you specify, it helps to answer a few questions with your client:

1. When will the sign be seen? If evening and night visibility matter, choose face-lit or combination lighting.
2. What is the wall like? Halo letters need a suitable surface and space behind the letter.
3. How far away are the viewers? Letter height and type go together – see our guide to letter height and viewing distance.
4. Which material suits the brand and the location? Our guide to stainless steel, aluminium and acrylic compares the options.
5. Are there local rules? Illuminated signs often need a permit; check with the local authority early.

When you have the answers, send us the artwork and letter heights through the quote form – we reply with the profile we recommend and a quotation. The full range is on the channel letters overview.
